Precise Requirements, Smart Planning

Key Information Display

• Area: 6200㎡

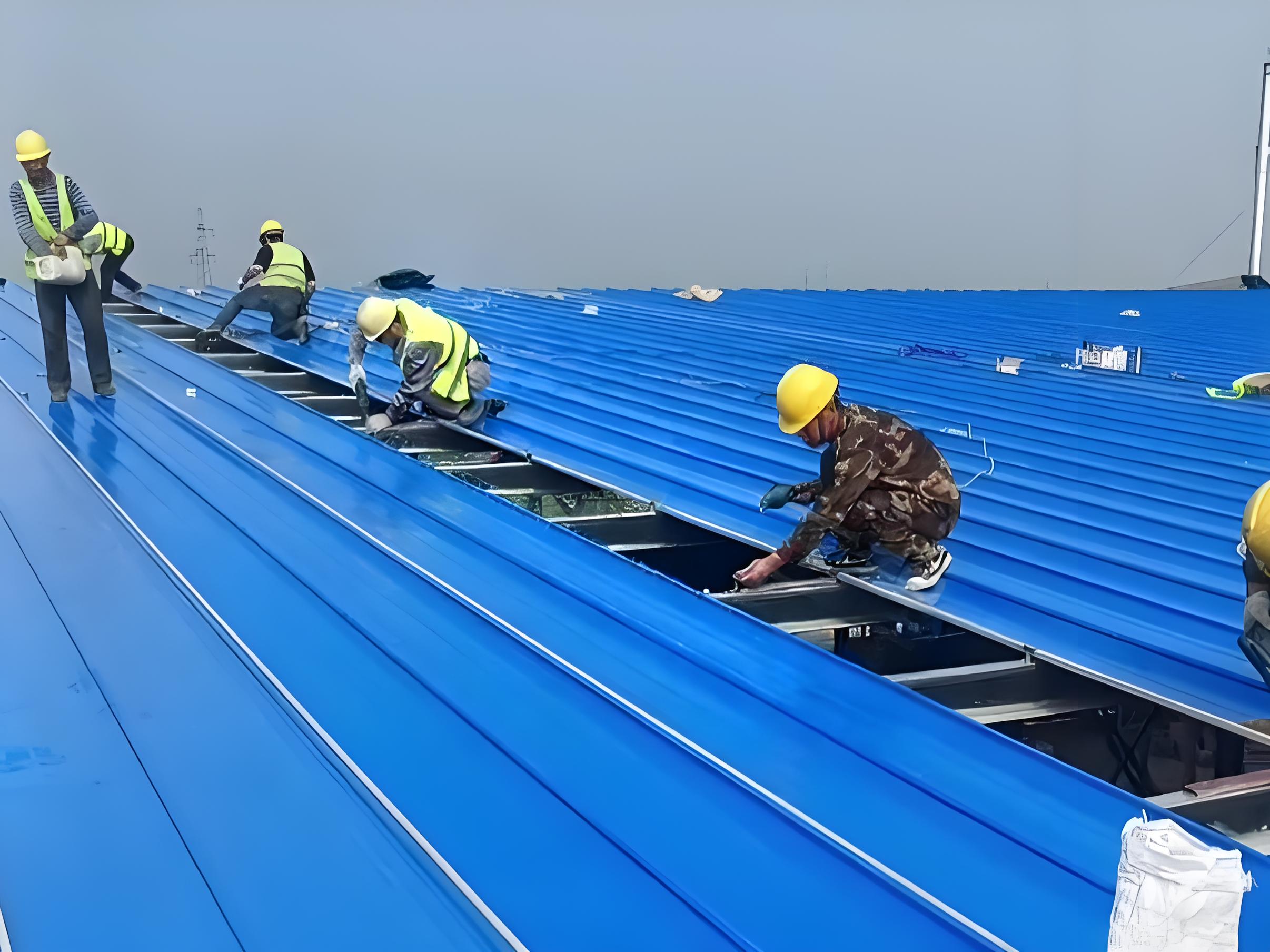

• Covering panels: The roof panels are made of 0.5mm thick 820 type color steel plate, and the roof uses a stretched glass wool mesh. The wall panels are made of 0.5mm thick 840 type color steel plate.
• Specific information: The building is 132 meters long and 48 meters wide; the eaves are 11.2 meters and 20.7 meters high respectively; each span is 24 meters, with four continuous spans, and a total area of ​​6200 square meters. The side columns are H500X280x6x12 and H600X280x6x12 respectively, the central columns are H500X280x6x12 and H700X300x8x14 respectively, the roof side beams are H(700～450)X200X6X8 and H(900～500)X250X8X10 respectively, the roof center beams are H450X180X6X8 and H(750～500)X200X6X8 respectively, the crane beam has an upper flange width of 300, a lower flange width of 220, and a height of 600, and includes gutters.


Project Background

Hubei Kaifu Pipe Pile (Qianjiang) Co., Ltd., located at No. 566, Group 8, Yunfu New Village, Jiyukou Town, Qianjiang City, Hubei Province, is a company engaged in the manufacturing and sales of cement, concrete structural components, plastics, fiberglass and other materials. Due to company expansion needs, they are collaborating with Weilan Steel Structure on a high-low span steel structure workshop equipped with overhead cranes.

Project delivery

Weilan Steel Structure is committed to providing clients with integrated ODM solutions and full-process services encompassing design, manufacturing, and installation. During construction, the client stated, "The results far exceeded our expectations, and we are extremely satisfied with the outcome of our collaboration." We deeply cherish this weighty trust. We will spare no effort to fulfill our responsibilities with stringent standards, ensuring that our clients' expectations are met and guaranteeing the successful delivery of the project.
