Kaisheng Energy Technology: 1#Steel Structure Workshop

Key Information Display

Area: 5610.78 ㎡
Cover panel: The roof panels are made of 0.6mm thick YX42-470 type color steel plates. The roof is load-bearing and can accommodate photovoltaic systems. The roof uses a stretched glass wool mesh, and the wall panels are made of 50mm thick polyurethane-sealed rock wool composite panels.
Detailed information: It measures 94.9 meters long, 51 meters wide, and 12 meters high at the eaves, with one main story and a partial third story; each span is 25 meters, with two continuous spans. The side columns are H600x350x10x14, the central columns are H500x350x8x16, the roof edge beams are H(800～500)x250x6x10, and the roof center beams are H500x200x6x8. The crane beam has an upper flange width of -380x18, a lower flange width of -250x14, and a height of -750x8. It includes gutters, and the parapet wall is 1.5 meters high.

Project Background

Henan Kaisheng Energy Technology Co., Ltd., headquartered in Longquan Street, Wuzhi County, Jiaozuo City, is an enterprise specializing in engineering and technological research and development, and new material technology research and development. Due to the company's expansion needs, they have partnered with Weilan Steel Structure to build two steel structure factory buildings.

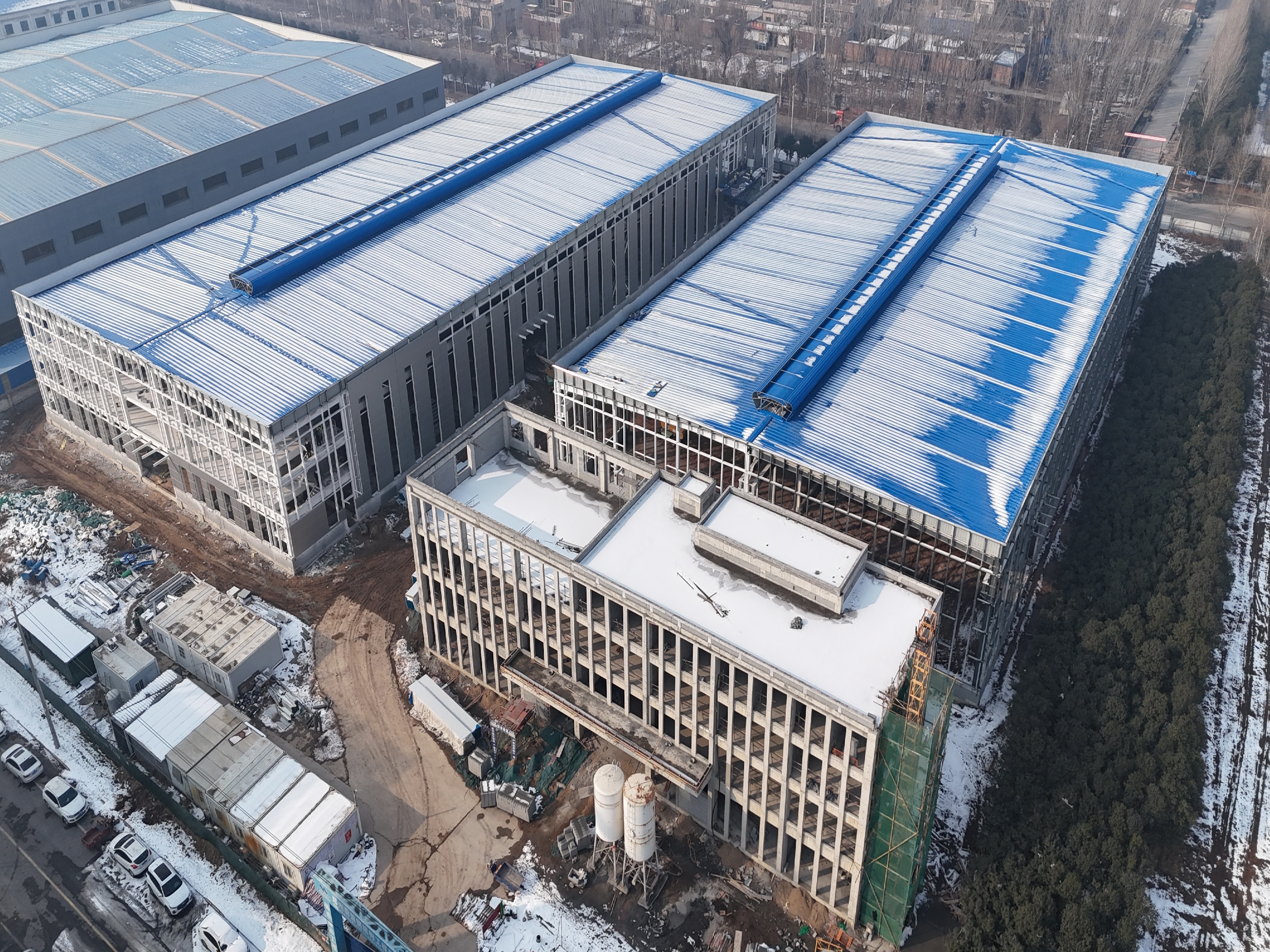

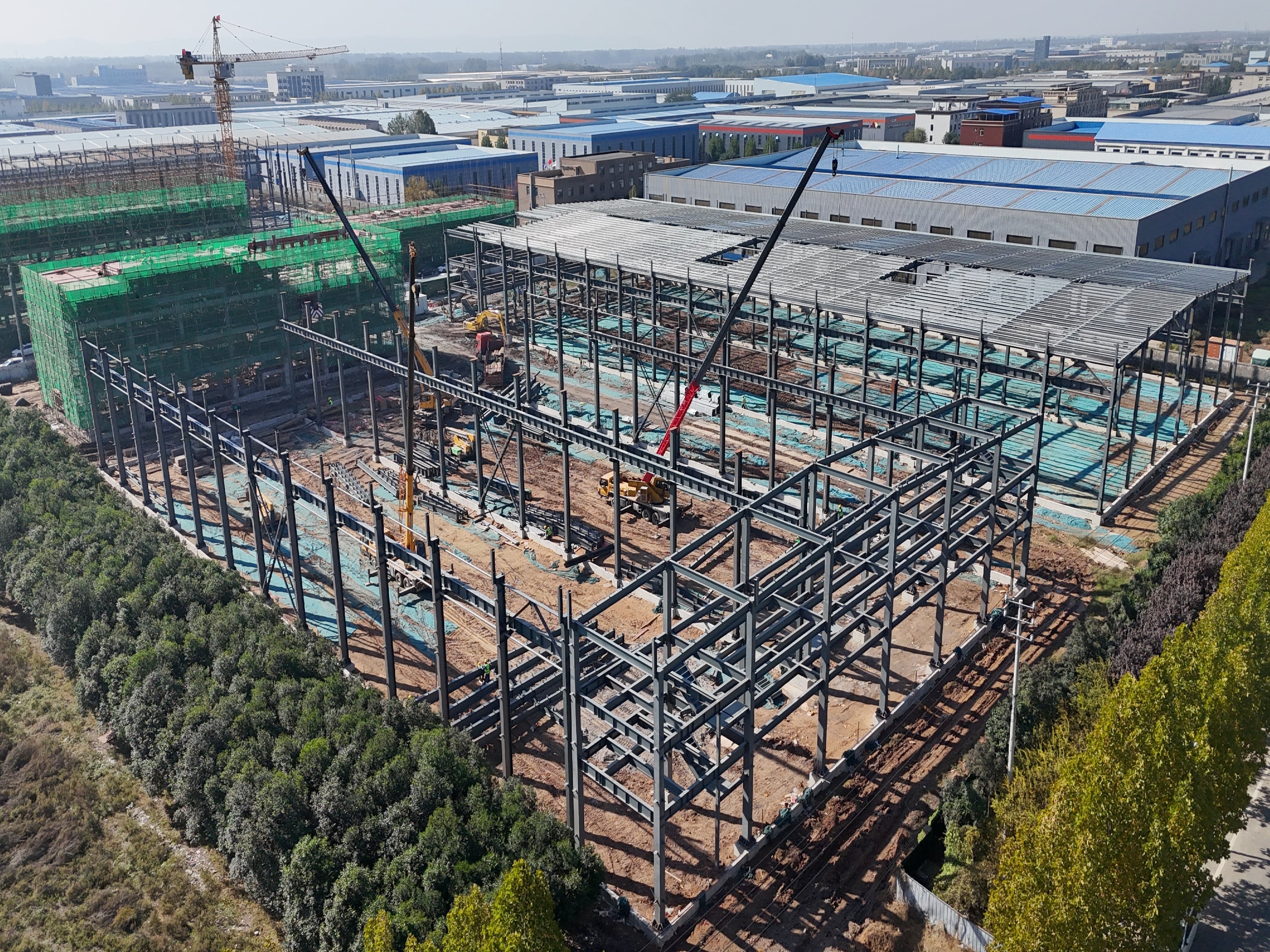

Steel Structure Workshop building

Project delivery

Weilan Steel Structure is committed to providing clients with integrated ODM solutions and full-process services encompassing design, manufacturing, and installation. During the construction of a unique steel structure factory for Henan Kaisheng Energy Technology, the client commented, "The final result significantly exceeded our expectations. The entire cooperation process was professional, smooth, and impressive." We deeply value this affirmation and it serves as motivation for our continued improvement. We will continue to adhere to professional standards, rigorously control every subsequent stage of the project, and strive for successful delivery, responding to this trust with tangible results.
