Key Information Display
- Area: 7838.81 ㎡
- Roofing Panels: The roof panels are made of 0.5mm thick YX42-470 type color steel plates. The roof is load-bearing and can accommodate photovoltaic systems. The roof uses a stretched glass mesh insulation. The wall panels are made of 200mm thick ALC panels.

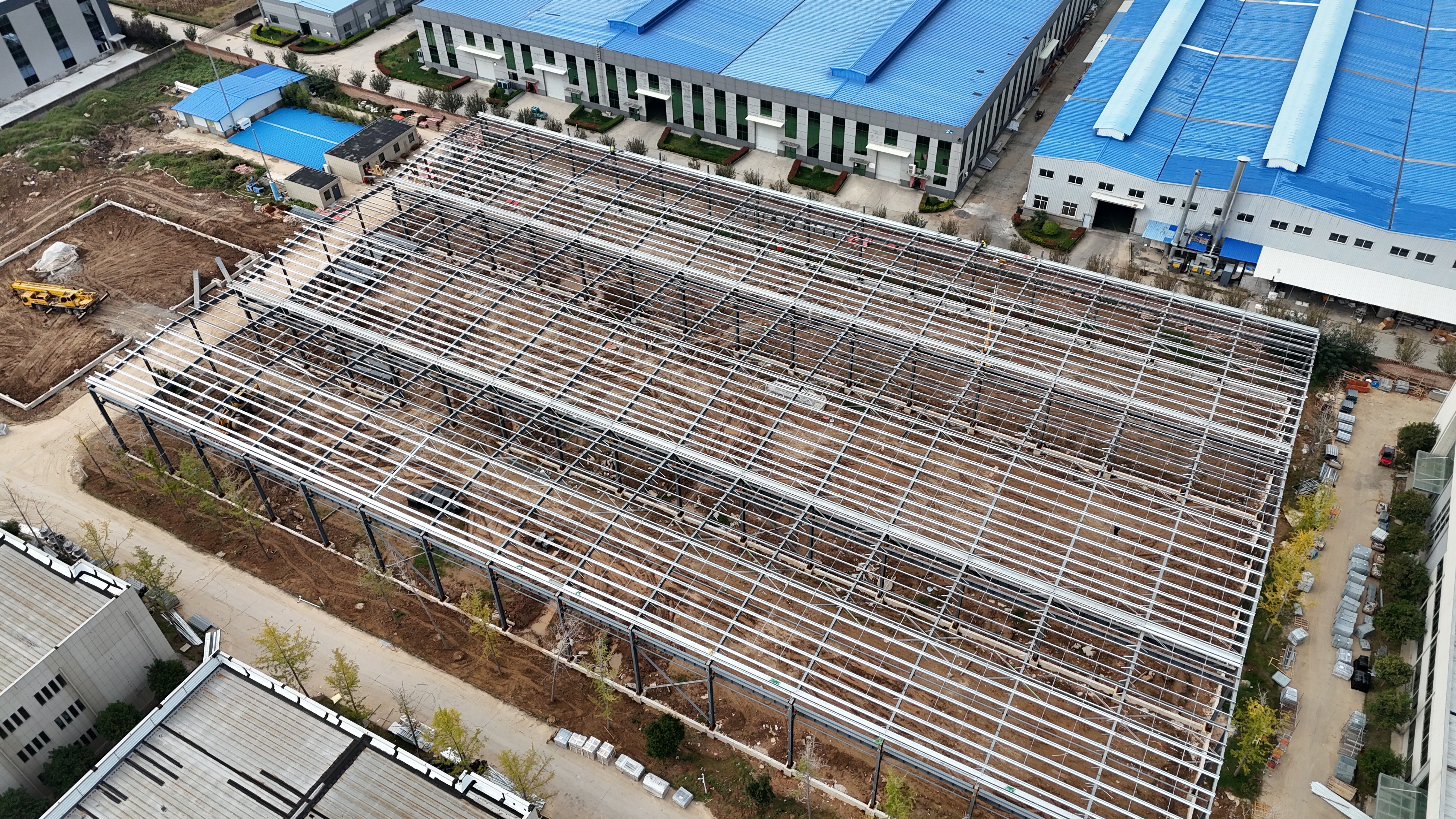

- Specific Information:Length 115.4 meters, width 69.4 meters, eaves height 9.5 meters, one-story building with three spans: 20.4 meters, 27.2 meters, and 20.4 meters respectively. Side columns are H450X240X6X12, central columns are H500X250X6X12, roof edge beams are H(600～450)X200X6X8, and roof center beams are H450X180X6X8. The crane beam has an upper flange width of -260×12, a lower flange width of -200×8, and a height of -600×6. It has a gutter and a parapet wall that is 1.6 meters high.
Project Background

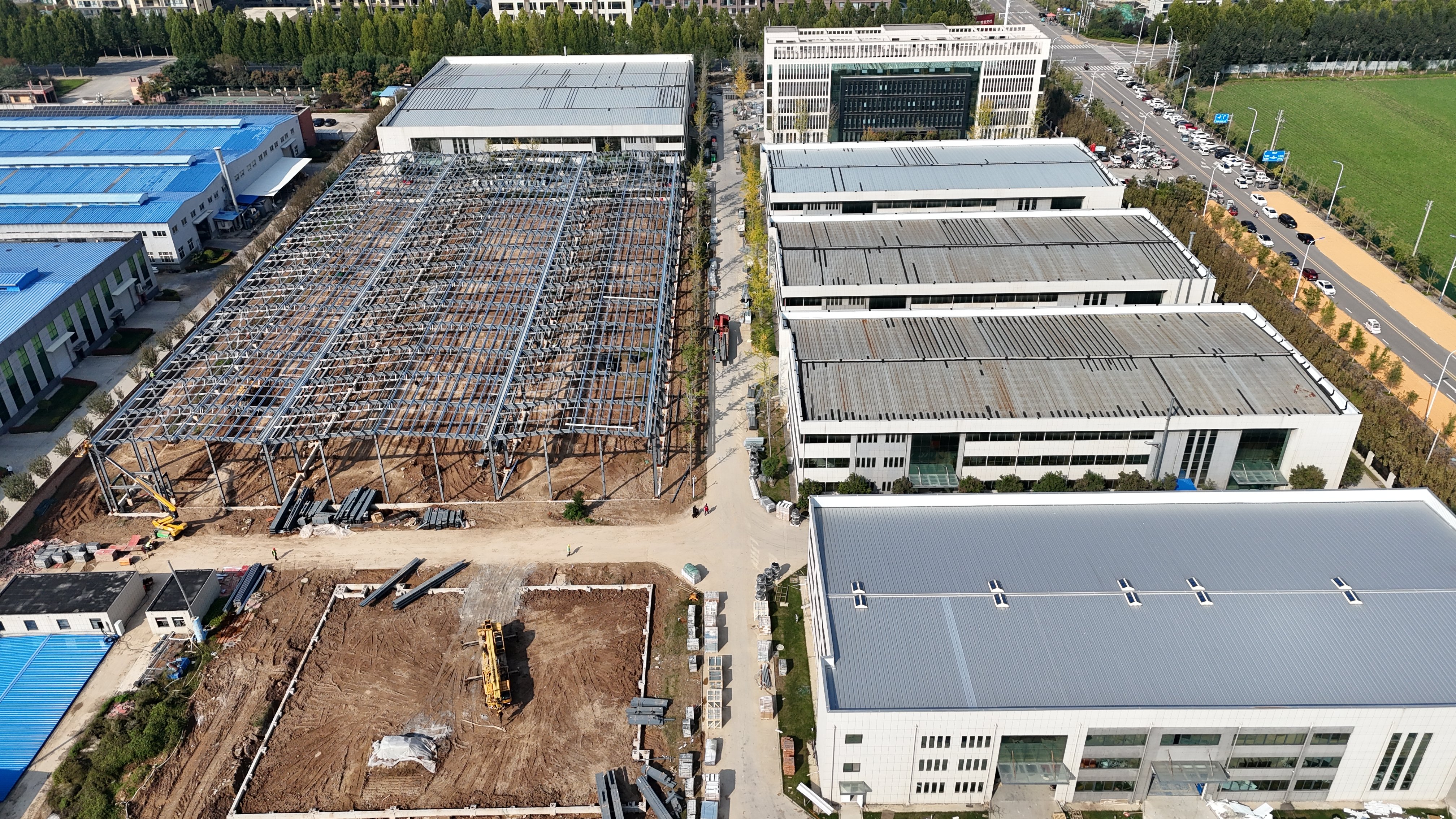

Henan Shimeike Biotechnology Co., Ltd., headquartered in Huaxian New District, Anyang City, is a biotechnology company specializing in the research and development and production of veterinary drugs and feed additives. Due to the company's expansion needs, they have partnered with Weilan Steel Structure for a second time, constructing two steel structure factory buildings.
Project delivery
Weilan Steel Structure is committed to providing clients with integrated ODM solutions and full-process services encompassing design, manufacturing, and installation. During construction, our client told us with satisfaction, "The final result is even better than we expected. We are truly very satisfied with this collaboration." This heartfelt recognition warmed our hearts and gave us tremendous encouragement.
