Weibaite: 1#Steel Structure Workshop

Share: youtube

Key Information Display

  • Area: 18525 ㎡

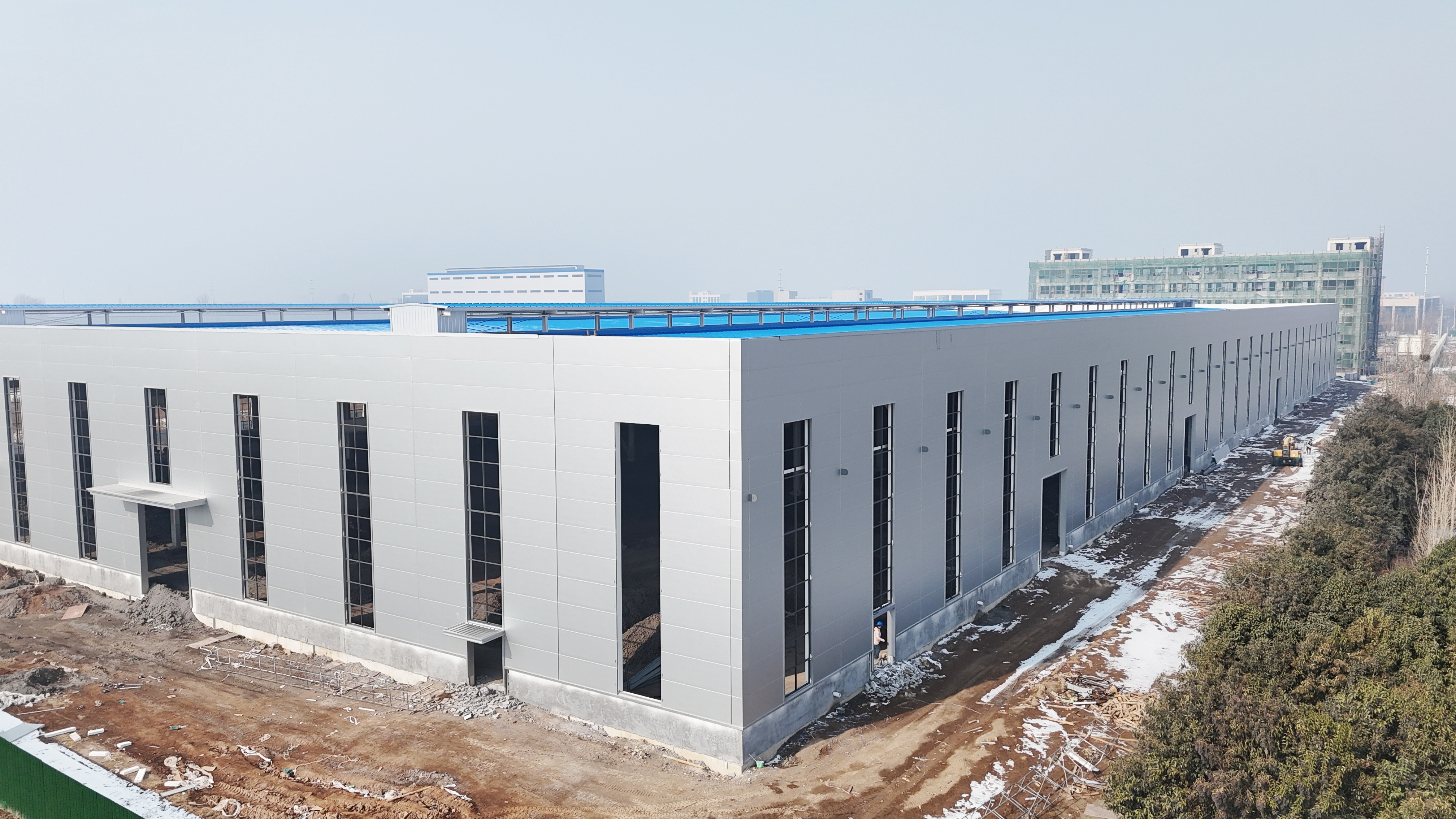

  • Cover panel: The roof panels are made of 0.6mm thick YX42-470 angle-seam type 3 color steel plates. The roof can be used for photovoltaics. The roof uses expanded glass wool. The wall panels are made of 50mm thick polyurethane edge-sealed rock wool composite panels.

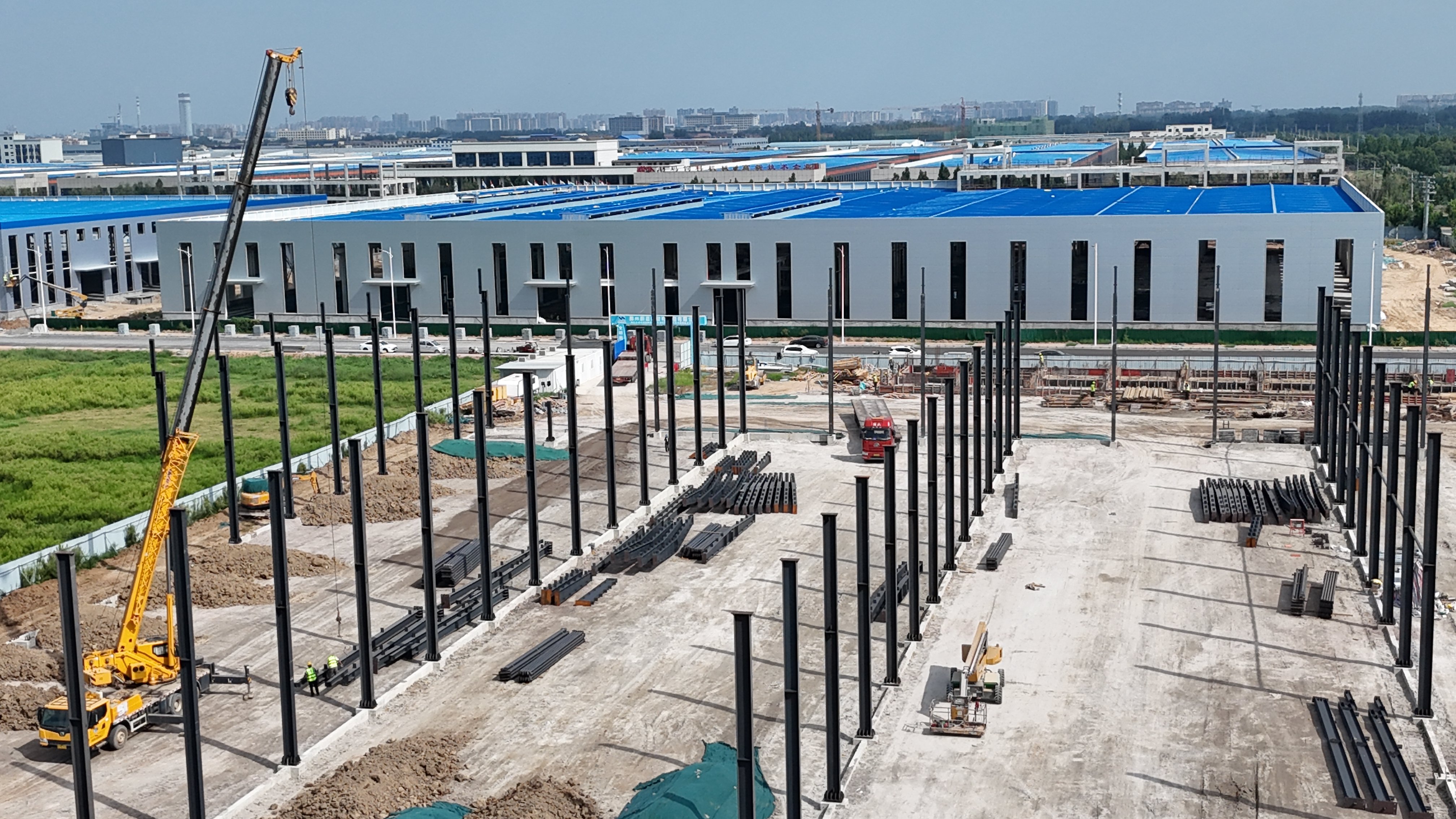

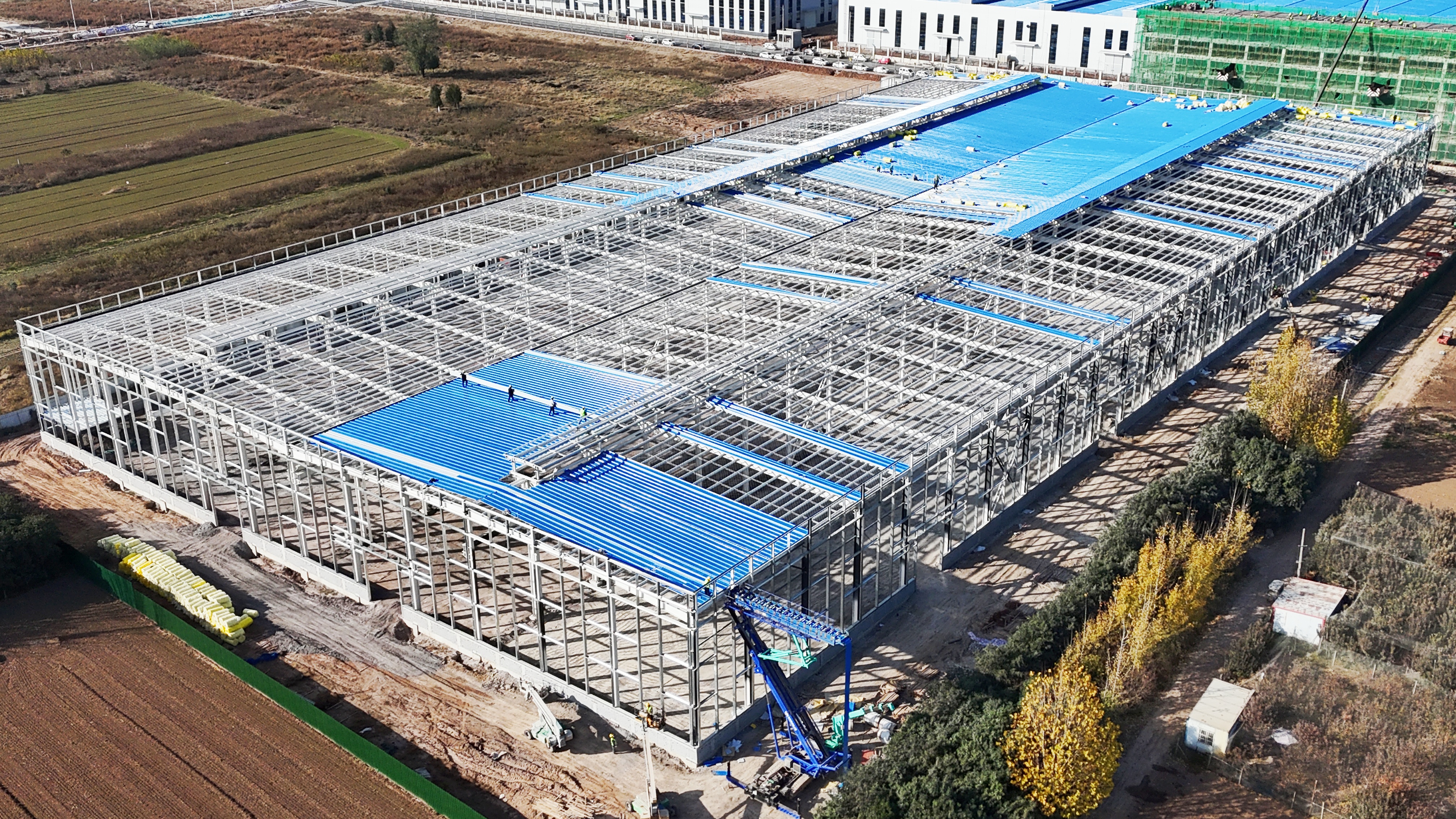

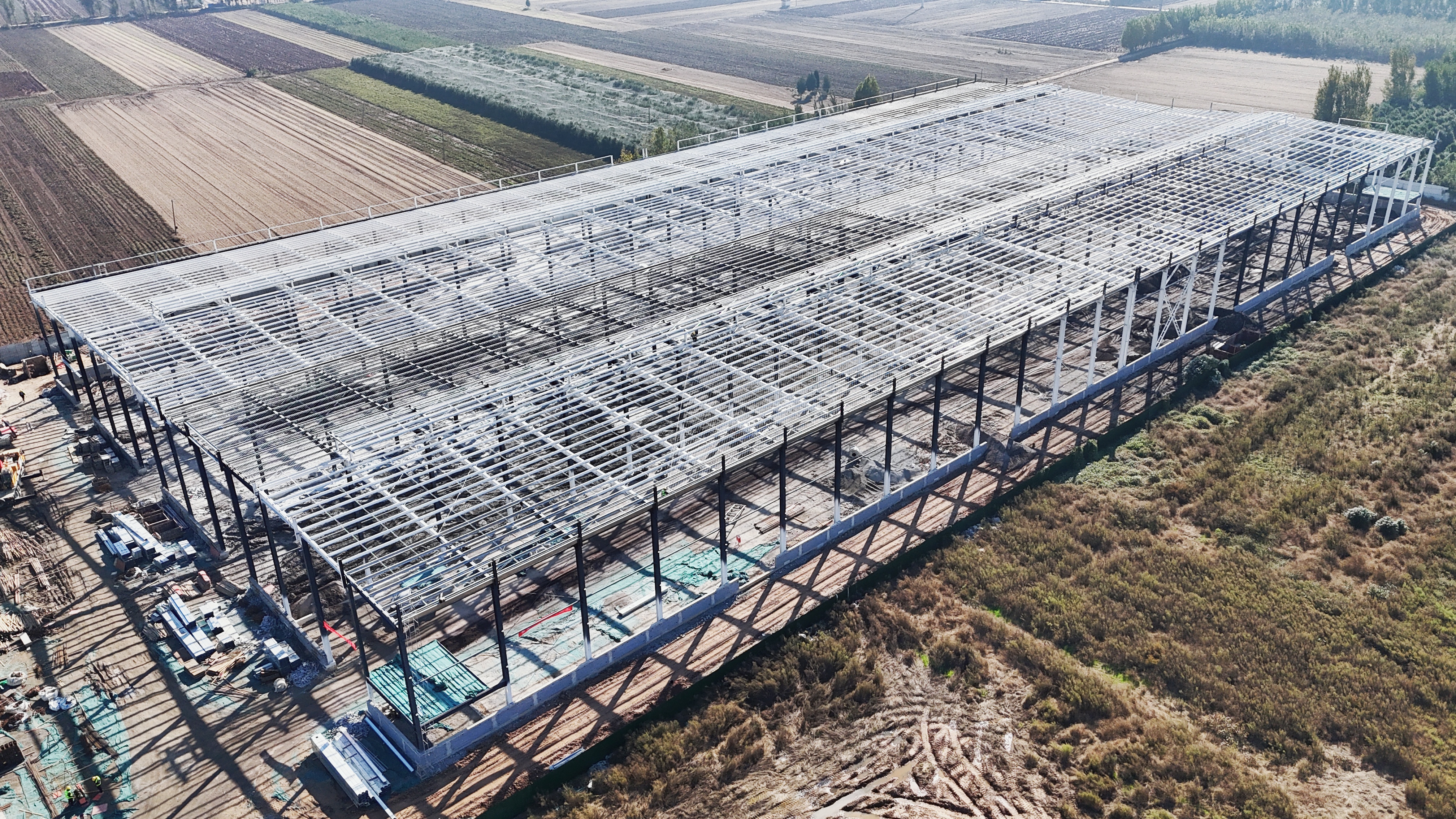

  • Detailed information: The building is 195 meters long, 95 meters wide, and has an eaves height of 12 meters. It has one story, with each span measuring 23.5 meters, and four continuous spans. The side columns are H500x300x8x14, the central columns are H500x280x6x12, the roof edge beams are H(750~500)x250x6x10, and the roof center beams are H500x200x6x10. The crane beam has an upper flange width of -300x14, a lower flange width of -250x12, and a height of -600 x 8. It includes gutters, and the parapet wall is 1.6 meters high.

 steel structure

Project Background

Henan Weibaite Intelligent Equipment Co., Ltd., located in Wuzhi County, Jiaozuo City, is an enterprise specializing in the research, development, production, and sales of special-purpose vehicles, non-motorized vehicles, multi-functional enclosures, mechanical equipment, various intelligent equipment, and related spare parts. Due to company expansion needs, they are collaborating with Weilan Steel Structure on a steel structure factory building.

 prefab steel  prefab steel

威百特 (5).JPG 威百特 (2).JPG
Project delivery

Weilan Steel Structure is committed to providing clients with integrated ODM solutions and full-process services encompassing design, manufacturing, and installation. During construction, our client told us with satisfaction, "From the initial concept to seeing it in person, every detail reflects your dedication. We feel both reassured and honored to work with such a team." This heartfelt affirmation warmed our hearts and gave us tremendous energy.
